Anti-Freeze Coolants

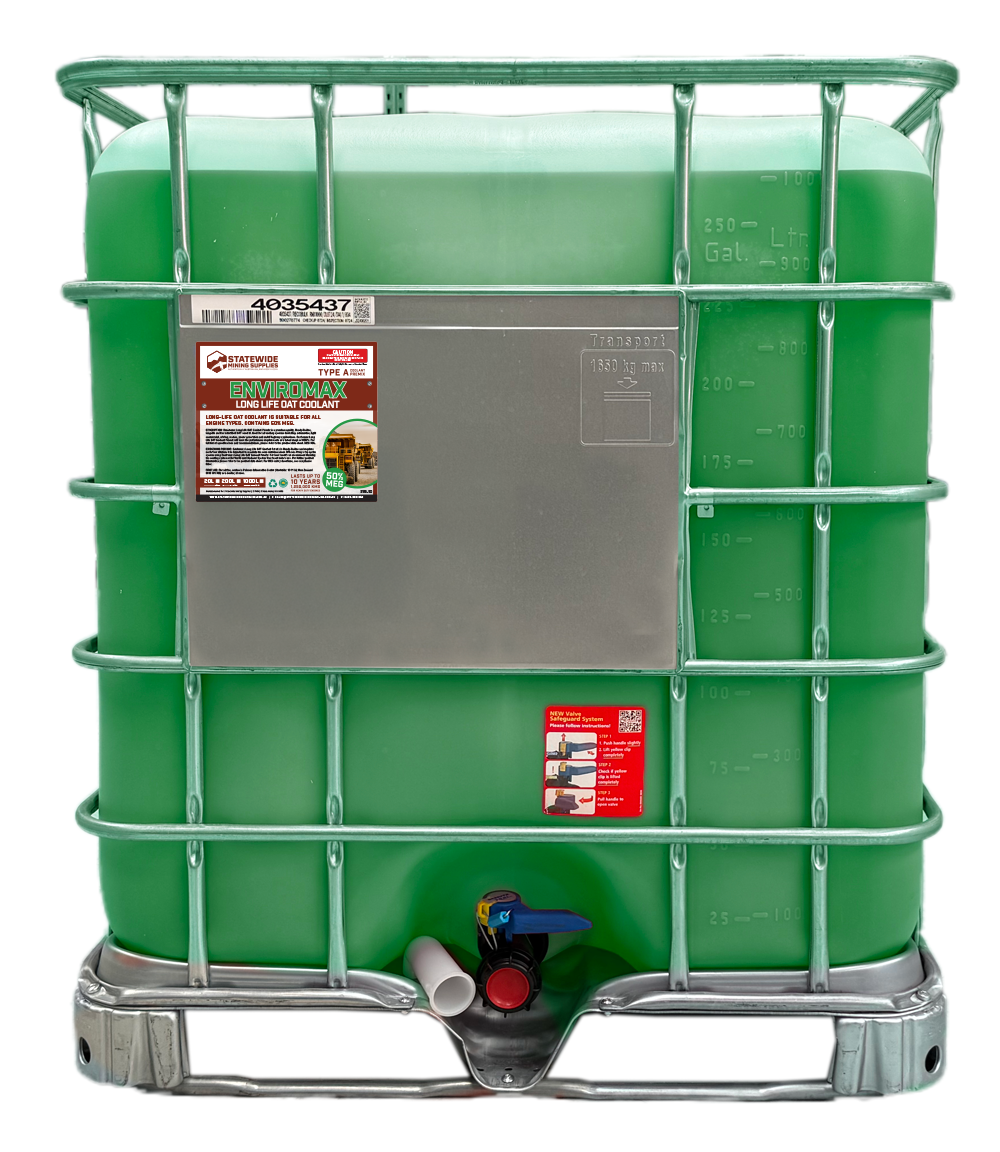

LONG LIFE OAT COOLANT

Antifreeze/Anti Boil Ethylene Glycol Based Longlife Engine Coolant

Meets Specifications:

AS 2108.1: 2004 Type A
AFNOR NFR 15-601
Jenbacher (TA1000-0201)
ASTM D3306, D6210, D4656, D4985
John Deere (JDM H5)
TransDiesel – CNHi OAT ELC Premix
Kenworth ALLCool
Bergen Engines (2.12.01)
Komatsu (KES 07.892 2009) BS 6580:2010
Liebherr (MD 1-36-130)
Caterpillar (1 EO 535, EC-1)
Mack (014 GS 17009)
Cummins CES (3666132, 14439, 14603)
MAN (324 Type SNF / 248)
DAF (742002)
Mercedes Benz (325.0)
DAF (BTPS 606A) Mercedes Benz (325.5)
DAF (DCEA 615)
Mitsubishi FUSO Genuine Diesel LL Coolant
Dennis Eagle Fleetguard MTU (MTL 5048)
Detroit (DFS93K217)
MWM (0199-99-2091/11)
Deutz (DQC CB-14)
Renault (41-01-001)
Freightliner Fleet Charge Powercool
Saab Scania® (6901 FUSO (SAE J814-C)
SAE J 1034 and JASO M 324
Hino Genuine LL Coolant
Toyota (K2601G – 1G)
Isuzu (GM6277M & HN2217) UD Long Life Coolant (Nissan)
IVECO Paraflu 11
Volvo (VCS) IVECO (AC9-50) Waukesha 4-1974D
Japanese JIS K 2234
Western Star ASTM D6210

Maximum Service Life

Automotive – 10 years / 1,000,000km
Heavy Duty Engines – 10 years / 1,000,000km / 15,000hrs
Marine & Stationary – 8 years / 32,000hrs

Long Life OAT Coolant is a Premium Quality, Latest Generation Organic, Long-Life Anti-freeze / Anti-boil Coolant Available as a Concentrate or Premixed – Ready to Use – Product.

Long Life OAT Coolant is Formulated with Australian Made Carboxylate Technology Inhibitors and Contains no Silicates, Borates, Phosphates, Nitrites, Nitrates or Amines (NAPS-Free). As is Required by Many OEMs and Mandated by Many Countries.

Long Life OAT Coolant contains 90% High Grade Mono-Ethylene Glycol and Premium OAT Inhibitors, ensuring ultimate corrosion protection and extended service life.

Long Life OAT Coolant Protects all Cooling Systems and Heat Exchange Metals, Plastics, Soft Seals, and Rubbers Found in Modern Cooling Systems and Provides Superior Cavitation, Corrosion and Wet-Sleeve Liner Pitting Protection.

Equipment Type Concentration:

Automotive  – 33-50% by Volume
Heavy Duty Engines – 50% by Volume
Marine & Stationary – 50% by Volume

 Key Features:

• Australian Formulated and Manufactured
• Latest Generation OAT Technology
• NAPS-Free
• Appropriate for Light Duty, Heavy Duty & Industrial Applications
• Mixed Fleet Suitable, meets OEM Performance Specifications
• Extended Water Pump Seal Service Life (Silicate Free)
• Superior Alloy Metal Hot Spot Corrosion Protection
• Extended Service Life
• No SCA Filters or Boosters Required

Key Properties:

pH: 9
DG: N/A
GHS:

Biodegradable:
Yes

Product Code: SWAC9

Colour: Green

Available in:
Concentrate and Premix
Package: 20L | 200L | 1000L

HDD N-OAT HEAVY DUTY COOLANT

With Nitrate and Molybdate meeeting ASTM D6210 and Caterpillar EC-1 specifications

Meets Specifications:

ASTM D6210
Caterpillar EC-1

Maximum Service Life

Heavy Duty Engines – 8 years / 1,250,000km / 15,000hrs
Marine & Stationary – 8 years / 32,000hrs

HDD N-OAT Coolant is a premium quality, fully formulated long-life anti-freeze / anti-boil coolant, available as a premix only.

HDD N-OAT Coolant is formulated with OAT carboxylate technology inhibitors boosted with nitrite and molybdate. The coolant doesn’t contain silicates, borates, phosphates, nitrates or amines, as is required by many OEMs and is specified by ASTM D6210 and Caterpillar EC-1.

HDD N-OAT Coolant protects all cooling systems and heat exchange metals, plastics, soft seals, and rubbers found in modern cooling system and ensures ultimate corrosion protection for cast iron and wet sleeve cylinder liners. HDD Coolant is compatible with many OEM factory filled coolants and can be used for top-up in mixed fleet operations, ensuring ultimate corrosion protection and extended service life.

HDD N-OAT Coolant protects all Cooling Systems and Heat Exchange Metals, Plastics, Soft Seals, and Rubbers Found in Modern Cooling Systems and Provides Superior Cavitation and Corrosion Protection.

Equipment Type
Heavy Duty Engines
Marine & Stationary

Key Features

• Australian Formulated and Manufactured to CAT© EC-1
• Latest Generation Hybrid OAT Technology with Nitrite and Molybdate
• Borate, Phosphate, Silicate and Amine Free
• Appropriate for Light Commercial, Heavy Duty & Industrial Applications
• Mixed Fleet Suitable, meets OEM Performance Specifications
• Extended Water Pump Seal Service Life (Silicate Free)
• Superior Alloy Metal Hot Spot Corrosion Protection
• Protects Wet Sleeve Liners from Cavitation Erosion
• Extended Service Life

Key Properties:

pH: 9
DG: N/A
GHS:

Biodegradable:
Yes

Product Code: SWAC12-50RED

Colour: Red

Available in:
Premix only (50%)
Package: 20L | 200L | 1000L

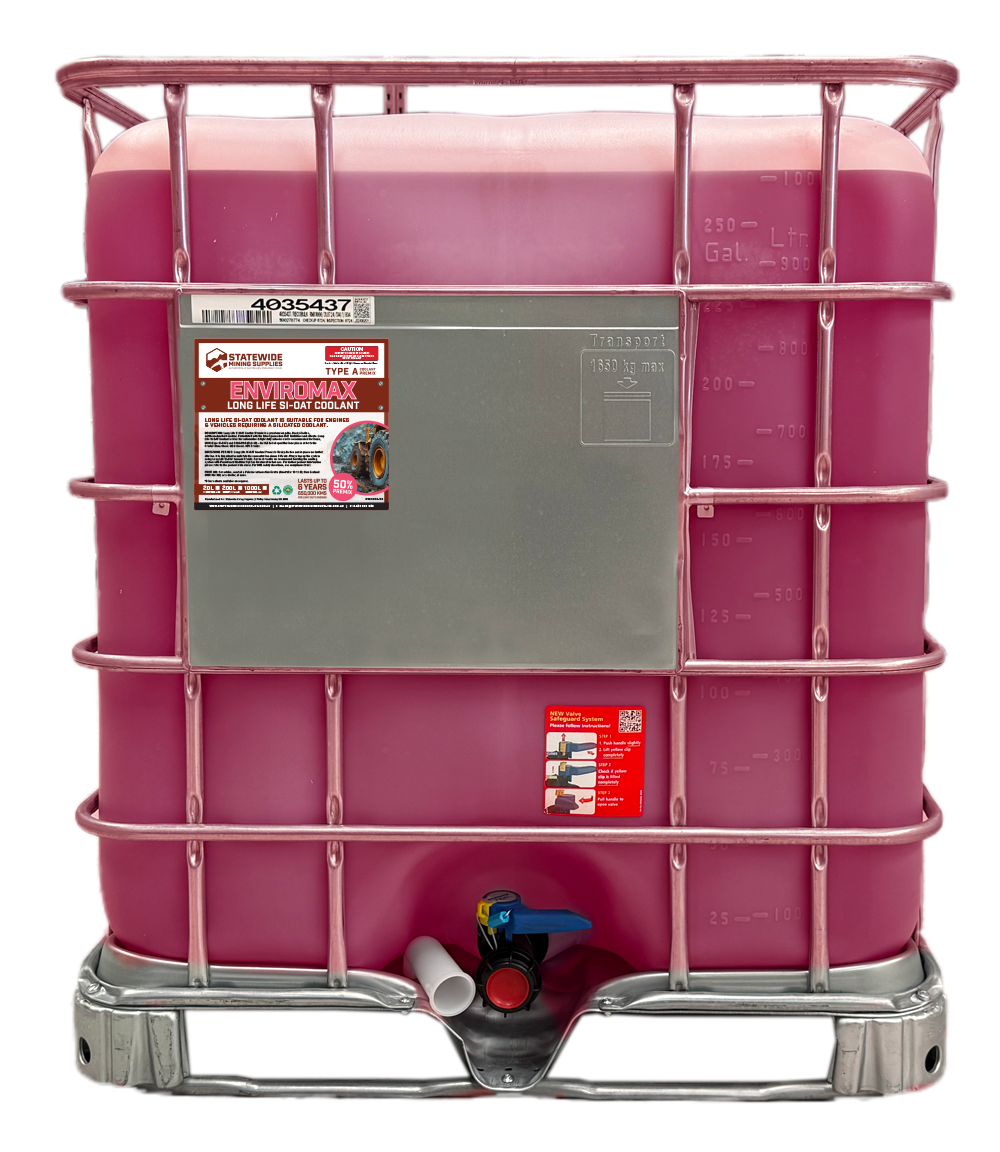

LONG LIFE Si-OAT HYBRID ORGANIC COOLANT

Boosted with Silicates for light-heavy duty industrial applications

Meets Specifications:

AS 2108.1: 2004 Type A
Ford ESE-M97B44-A
AFNOR NFR 15-601
GM 1825M
ASTM D3306, D4656, D4985
GM 1899M
ASTM D4656
ASTM D6210
ASTM D4985
JIS K2234 LLC
BS 6580
JASO M325 LLC
Chrysler MS 9769
MAN 324 NF
Cummins 92 T8-9
MTU
Daimler Chrysler
SAE J814
Detroit Diesel 7SE298
SAE J1034

Maximum Service Life

Automotive – 6 years / 350,000km
Heavy Duty Engines – 6 years / 650,000km / 18,000hrs
Marine & Stationary – 6 years / 24,000hrs

Long Life Si-OAT Hybrid Coolant is a Premium Quality, Latest Generation Hybrid Organic, Long-Life Anti-freeze / Anti-boil Coolant Available as a Concentrate or Premixed – Ready to Use – Product.

Long Life Si-OAT Hybrid Coolant is Formulated with Australian Made Carboxylate Technology Inhibitors Boosted with Silicate and Contains No Borates, Phosphates, Nitrites, Nitrates or Amines (NAP-Free). As is Required by Many OEMs and Mandated by Many Countries.

Long Life Si-OAT Hybrid Coolant contains 90% High Grade Mono-Ethylene Glycol and Premium OAT Inhibitors, ensuring ultimate corrosion protection and extended service life.

Long Life Si-OAT Hybrid Coolant Protects all Cooling Systems and Heat Exchange Metals, Plastics, Soft Seals, and Rubbers Found in Modern Cooling Systems and Provides Superior Cavitation and Corrosion Protection.

Equipment Type Concentration
Automotive – 33-50% by Volume
Heavy Duty Engines – 50% by Volume
Marine & Stationary – 50% by Volume

Key Features

• Australian Formulated and Manufactured
• Latest Generation HOAT Technology
• NAP-Free
• Appropriate for Light Duty, Heavy Duty & Industrial Applications
• Mixed Fleet Suitable, meets OEM Performance Specifications
• Extended Water Pump Seal Service Life (Low Silicate Formulation)
• Superior Alloy Metal Hot Spot Corrosion Protection
• Extended Service Life
• No SCA Filters or Boosters Required

Key Properties:

pH: 8.5
DG: N/A
GHS:

Biodegradable:
Yes

Product Code: SWAC11

Colour: Green

Available in:
Concentrate and Premix
Package: 20L | 200L | 1000L

ULTRA LONG LIFE NON-2EHA ORGANIC COOLANT - MEG

Monoethylene Glycol Based, Non-2EHA Ultra Heavy Duty Coolant

Meets Specifications:

AFNOR NFR 15-601
Jenbacher (TA1000-0201)
ASTM D3306, D6210
John Deere (JDM H5)
ASTM D4656, D4985
Kenworth ALLCool
Bergen Engines (2.12.01)
Komatsu (KES 07.892 2009)
BS 6580:2010
Liebherr (MD 1-36-130)
Caterpillar (1 EO 535, EC-1)
Mack (014 GS 17009)
Cummins CES (3666132, 14439, 14603)
MAN (324 Type SNF / 248)
DAF (742002)
Mercedes Benz (325.0)
DAF (BTPS 606A)
Mercedes Benz (325.5)
DAF (DCEA 615)
Mitsubishi FUSO Genuine Diesel LL Coolant
Dennis Eagle Fleetguard
MTU (MTL 5048)
Detroit (DFS93K217)
MWM (0199-99-2091/11)
Deutz (DQC CB-14)
Renault (41-01-001)
Freightliner Fleet Charge Powercool
Saab Scania® (6901
FUSO (SAE J814-C)
SAE J 1034 and JASO M 324
Hino Genuine LL Coolant
Toyota (K2601G – 1G)
Isuzu (GM6277M & HN2217)
UD Long Life Coolant (Nissan)
IVECO Paraflu 11
Volvo (VCS2)
IVECO (AC9-50)
Waukesha 4-1974D
Japanese JIS K 2234
Western Star ASTM D6210

Maximum Service Life

Heavy Duty Engines – 10 years / 1,600,000km / 32,000hrs
Marine & Stationary – 10 years / 32,000hrs

ULTRA HD Coolant is a Premium Australian Formulated and Manufactured Long-Life Organic Coolant, for use in Commercial, On/Off Road Transportation, Mining, Marine, Stationary Engine, and Industrial Cooling Applications that Specify 2-EH Free Chemistry.

ULTRA HD Coolant is a Premium Quality, Latest Generation Organic, Long-Life Anti-freeze / Anti-boil Coolant Available as a Concentrate or Premixed – Ready to Use – Product.

ULTRA HD Coolant is Formulated with Specialised non-2EH Carboxylate Technology Inhibitors and Contains no Nitrite, Silicates, Borates, Phosphates or Amines. As is Required by Many OEMs and Mandated by Many Countries.

ULTRA50 Concentrate contains Mono Ethylene Glycol and Premium Non-2EH OAT Inhibitors, ensuring ultimate corrosion protection and extended service life.

ULTRA HD Coolant Protects all Cooling Systems and Heat Exchange Metals, Plastics, Soft Seals, and Rubbers Found in Modern Cooling Systems and Provides Superior Cavitation, Corrosion and Wet-Sleeve Liner Pitting Protection.

Equipment Type Concentration
Product is ready to use.

Key Features

• Australian Formulated and Manufactured
• Latest Generation Non-2EH OAT Technology
• Nitrite, Molybdate, Borate, Phosphate, Silicate and Amine Free
• Appropriate for Heavy Duty & Industrial Applications
• Mixed Fleet Suitable, meets OEM Performance Specifications
• Extended Water Pump Seal Service Life (Silicate Free)
• Superior Alloy Metal Hot Spot Corrosion Protection
• Extended Service Life
• No SCA Filters or Boosters Required

Key Properties:

pH: 8.8
DG: N/A
GHS:

Biodegradable:
Yes

Product Code: SWAC4-ULTRA50MEG

Colour: Red

Available in:
Premix Only
Package: 20L | 200L | 1000L

ULTRA LONG LIFE NON-2EHA ORGANIC COOLANT - PG

Propylene Glycol Based, Non-2EHA Ultra Heavy Duty Coolant

Meets Specifications:

AFNOR NFR 15-601
Jenbacher (TA1000-0201)
ASTM D3306, D6210
John Deere (JDM H5)
ASTM D4656, D4985
Kenworth ALLCool
Bergen Engines (2.12.01)
Komatsu (KES 07.892 2009)
BS 6580:2010
Liebherr (MD 1-36-130)
Caterpillar (1 EO 535, EC-1)
Mack (014 GS 17009)
Cummins CES (3666132, 14439, 14603)
MAN (324 Type SNF / 248)
DAF (742002)
Mercedes Benz (325.0)
DAF (BTPS 606A)
Mercedes Benz (325.5)
DAF (DCEA 615)
Mitsubishi FUSO Genuine Diesel LL Coolant
Dennis Eagle Fleetguard
MTU (MTL 5048)
Detroit (DFS93K217)
MWM (0199-99-2091/11)
Deutz (DQC CB-14)
Renault (41-01-001)
Freightliner Fleet Charge Powercool
Saab Scania® (6901
FUSO (SAE J814-C)
SAE J 1034 and JASO M 324
Hino Genuine LL Coolant
Toyota (K2601G – 1G)
Isuzu (GM6277M & HN2217)
UD Long Life Coolant (Nissan)
IVECO Paraflu 11
Volvo (VCS2)
IVECO (AC9-50)
Waukesha 4-1974D
Japanese JIS K 2234
Western Star ASTM D6210

Maximum Service Life

Heavy Duty Engines – 10 years / 1,600,000km / 32,000hrs
Marine & Stationary – 10 years / 32,000hrs

ULTRA HD PG is a long-life non 2-EH PG based organic coolant, for use in commercial, on/off road transportation, mining, marine, stationary engine, and industrial cooling applications that specify 2-EH free chemistry.

ULTRA HD PG Coolant is a premium quality, latest generation organic, long-life anti-freeze / anti-boil coolant available as a premixed – ready to use – product.

ULTRA HD PG Coolant is formulated with specialised Non 2-EH inhibitors and contains no nitrite, silicates, borates, phosphates or amines – As is required by many OEMs and mandated by many countries.

ULTRA HD PG Coolant protects all cooling systems and heat exchange metals, plastics, soft seals, and rubbers found in modern cooling systems and provides superior cavitation, corrosion and wet-sleeve liner pitting protection.

Equipment Type Concentration
Product is ready to use.

Key Features

• Australian Formulated and Manufactured
• Latest Generation Non-2EH OAT Technology
• Nitrite, Molybdate, Borate, Phosphate, Silicate and Amine Free
• Appropriate for Heavy Duty & Industrial Applications
• Mixed Fleet Suitable, meets OEM Performance Specifications
• Extended Water Pump Seal Service Life (Silicate Free)
• Superior Alloy Metal Hot Spot Corrosion Protection
• Extended Service Life
• No SCA Filters or Boosters Required

Key Properties:

pH: 8.8
DG: N/A
GHS:

Biodegradable:
Yes

Product Code: SWAC4-ULTRA50PG

Colour: Red

Available in:
Premix Only
Package: 20L | 200L | 1000L

HDD HYBRID COOLANT - PG

NON-2EHA HDD Coolant with Propylene Glycol

Meets Specifications:

TMC RP-338 Extended Life
Cummins CES (3666132, 14439, 14603)
Kenworth ALLCool
TMC RP-330
Cummins ES Compleat
Komatsu® AF-NAC (KES 07.892 2009)
ASTM D-3306
DAF (742002, BTPS 606A, DCEA 615)
MAN (324 Type SNF / 248)
ASTM D-4985
Detroit Diesel® (DFS93K217, 7SE298)
Mercedes Benz® (DBL 7700)
ASTM D-6210
EMD M.I. 1748E
MTU (MTL 5048)
ASTM D-5216
Freightliner 48 – 22880
Navistar® Bergen Engines (2.12.01)
GM® 1899 PACCAR®
Case New Holland®
Iveco® Cursor Engine
Saab Scania® 6901
Caterpillar® EC-1
Japanese JS K 2234
SAE J 1034 and JASO M 324
Caterpillar® ELC
Jenbacher (TA1000-0201)
Waukesha 4-1974D
CID – A – A – 52624
John Deere® (JDM H24, 8650-5)
Volvo® (Spec No. 1286083)

Maximum Service Life

Heavy Duty Engines – 6 years / 1,000,000km / 12,000hrs
Marine & Stationary – 6 years / 24,000hrs

HDD Hybrid Coolant is a premium Australian formulated and manufactured long-life heavy-duty propylene glycol coolant for use in on/off road transportation, mining, marine, stationary engine, and industrial cooling applications where a fully formulated Non 2-EH coolant is required.

HDD Hybrid Coolant is a premium quality, fully formulated Non 2-EH hybrid-organic, long-life anti-freeze / anti-boil coolant available as a premixed – ready to use – product.

HDD Hybrid Coolant is formulated with Australian made carboxylate technology inhibitors, and contains low silicate, nitrite, nitrate and molybdate, as is required by many American heavy duty OEMs such as Cummins, Detroit, Caterpillar. The coolant contains 90% high grade propylene glycol and premium inhibitors, ensuring ultimate corrosion protection for heavy duty engines where SCA filters are recommended or required.

HDD Hybrid Coolant protects all cooling systems and heat exchange metals, plastics, soft seals, and rubbers found in modern cooling systems and provides superior cavitation, corrosion and wet-sleeve liner pitting protection.

Equipment Type Concentration
Heavy Duty Engines – 50% by Volume
Marine & Stationary – 50% by Volume

Key Features

• Australian Formulated and Manufactured
• Latest Generation Non-2EHA Hybrid OAT Technology
• Phosphate and Amine Free
• Appropriate for Heavy Duty & Industrial Applications
• Mixed Fleet Suitable, meets OEM Performance Specifications
• Extended Water Pump Seal Service Life (Low Silicate)
• Superior Alloy Metal Hot Spot Corrosion Protection
• High Performance Wet Cylinder Liner Protection
• Decades of Non-2EHA Successful Market Experience
• Compatible with OEM SCA Filters

Key Properties:

pH: 8.5
DG: N/A
GHS: N/A
Biodegradable:
Yes

Product Code: SWAC7-50-BLUE

Colour: Blue

Available in:
Premix Only
Package: 20L | 200L | 1000L



About Statewide Mining Supplies

Statewide Mining Supplies vision is to become a cornerstone in the Australian mining industry for decades to come. Our mission is to provide high-quality, safe and environmentally conscious chemicals, parts and services that enhance the efficiency and safety of mining operations. We are committed to sustainability, innovation, and the continuous improvement of our products and services. Our values are rooted in integrity, customer satisfaction, and a deep understanding of the unique challenges faced by the mining sector.
